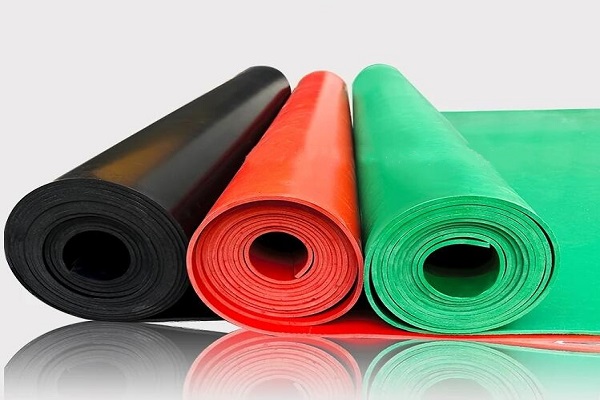

In the daily operation and maintenance of distribution rooms and substations,high-voltage insulating rubber mats serve as the first line of defense for electricians’safety.However,after visiting multiple power companies,I discovered that a seemingly simple question—”Do high‑voltage insulating rubber mats have distinct top and bottom surfaces?”—has been confusing many frontline operators.Some insist on placing the smooth side up and the rough side down;others believe the side with printed text is the”correct”side.These misconceptions may not only shorten the lifespan of the mats but could also create serious safety hazards.Today,we will thoroughly clarify this issue from a professional standpoint.
1.What do national standards say?Both sides are equally required
To understand whether there is a”top side”or”bottom side,”we must refer to authoritative industry standards.According to HG/T 2949-2023″Electrical Insulating Rubber Sheets”and related regulations such as the”Electric Power Safety Work Procedures,”both the top and bottom surfaces of insulating rubber mats must be free from harmful irregularities.”Harmful irregularities”refer to defects that compromise uniformity or damage surface smoothness,such as small holes,cracks,local bulges,cuts,conductive foreign inclusions,folds,voids,uneven ripples,or casting marks.
Thus,according to national standards,both sides of a high-voltage insulating rubber mat are subject to identical quality requirements.There is no distinction between a”right”and”wrong”side.Both surfaces must meet the same strict criteria for insulation performance and appearance.
2.Why do so many people think there is a right side?
If standards require both sides to be identical,why does the idea of a”right side”persist?There are three main reasons:
First,lingering habits from manufacturing processes.Older-style insulating mats often had fabric patterns or grid imprints on the underside during vulcanization,while the top remained relatively smooth.Over time,this led to the common practice of placing the smooth side upward.However,modern high-quality mats use advanced flat vulcanization technology,resulting in nearly identical smoothness on both sides.
Second,misunderstanding of anti-slip design.Some mats feature textured patterns on one side and a flat surface on the other,leading users to assume the patterned side is the”correct”side.In reality,whether the anti-slip texture faces up or down depends on the specific application—upward for increased friction to prevent slipping,downward for better grip to prevent displacement.
Third,misleading labeling.Some products print voltage ratings or brand names on just one side,which can lead users to mistakenly identify it as the”front.”However,these labels are purely informational and have no bearing on insulation performance.
＞send emails to sales@jingdongrubber.com,get a quote now
3.What should you really focus on?
Rather than debating which side is correct,it’s more important to pay attention to the following key factors:
Material:High-quality insulating mats are made from non-polar rubbers such as natural rubber(NR)or styrene-butadiene rubber(SBR).Products with over 70%virgin rubber content offer superior elasticity,aging resistance,and longer service life.
Thickness matching voltage level:Use 3 mm thickness for 5 kV distribution rooms,5 mm or more for 10 kV rooms,and 10–12 mm for 35 kV high-voltage environments.
Testing and certification:The product should come with authoritative third-party test reports clearly stating critical parameters such as power frequency withstand voltage and leakage current.
4.Where does a professional manufacturer’s confidence come from?
Take Jingdong Rubber Co.,Ltd.as an example.With over 40 years of industry experience,this specialized rubber sheet manufacturer was involved in drafting both the national standard GB/T 5574-2008″Industrial Rubber Sheets”and the industry standard HG/T 2949-2023″Electrical Insulating Rubber Sheets.”Its insulating rubber mats cover the full range of voltage levels from 5 kV to 35 kV.The company holds ISO9001,ISO45001,and ISO14001 certifications and exports its products worldwide.From raw material inspection to final product testing,every insulating mat strictly adheres to national standards,ensuring consistent quality on both sides—this is the attitude a professional manufacturer should have.
According to national standards,high-voltage insulating rubber mats do not have designated top or bottom sides;both surfaces meet identical quality and insulation performance requirements.Instead of worrying about”which side faces up,”focus on core factors that truly determine safety:material quality,thickness compatibility,and certification.Choosing a professional manufacturer like Jingdong Rubber—involved in drafting national standards with over 40 years of technical expertise—is the responsible choice for safeguarding lives.
