Industrial procurement professionals may have encountered this problem:fabric reinforced rubber sheets delaminate,crack or deform shortly after purchase,resulting in frequent equipment downtime.The replacement cost can even exceed the original procurement cost of the sheets.Many buyers immediately assume counterfeit products,yet the root cause usually lies in an earlier decision—improper thickness selection.Fabric reinforced rubber sheets are available in thicknesses ranging from 1 mm to 10 mm.How do you select the right specification?This article elaborates on this subject in detail.

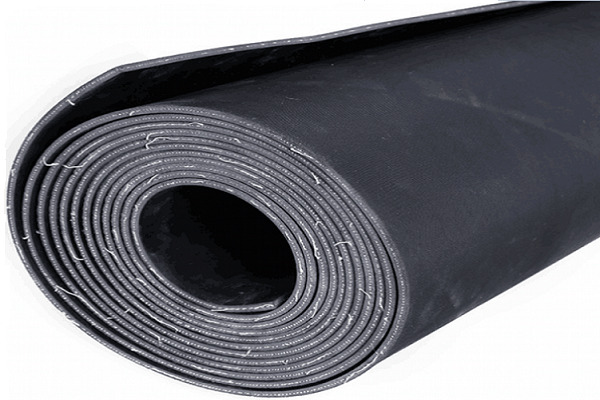

Thickness is not an independent parameter;it works in tandem with fabric plies.The primary difference between fabric reinforced rubber sheets and ordinary rubber sheets is that one or multiple woven fabric layers are embedded within the rubber matrix,acting as a”reinforcing skeleton”.The fabric bears the major load,so fabric reinforced rubber sheets generally feature higher tensile strength and a service life approximately three times that of unreinforced rubber sheets.
With this principle understood,a key logic emerges:greater thickness allows for more fabric plies,delivering enhanced pressure resistance and tear resistance.Thin sheets of 1.5 mm normally contain one fabric layer;sheets starting at 3 mm can incorporate two layers,while sheets above 6 mm are often manufactured with three fabric plies.Therefore,purchasers should not focus solely on thickness,but also confirm the number of embedded fabric layers.
Quick Reference for Common Specifications:Applications by Thickness Standard thicknesses of fabric reinforced rubber sheets cover major dimensions including 3 mm,5 mm,6 mm,8 mm and 10 mm.The standard width ranges from 1 meter to 2 meters,and the roll length can be customized.See the reference below for selection:1–2 mm thickness with 1 fabric layer:for lightweight sealing gaskets and gasket blanking;3–5 mm thickness with 1–2 fabric layers:for equipment liners,floor covering and general sealing applications;6–10 mm thickness with 2–3 fabric layers:for truck bed lining,horse stalls,cattle pens and medium-pressure sealing scenarios.
＞send emails to sales@jingdongrubber.com,get a quote now
Three Additional Key Factors Beyond Thickness Thickness alone cannot guarantee satisfactory performance.Three easily overlooked parameters determine the practical performance of fabric reinforced rubber sheets:First,specific gravity.Qualified products have a specific gravity between 1.4 and 1.6.A low specific gravity usually indicates insufficient rubber content and excessive fillers,which lead to premature aging and cracking.Second,bonding quality between fabric plies and rubber.High-quality fabric reinforced sheets feature evenly distributed fabric layers tightly bonded to rubber,free of local bulges or delamination.When inspecting the cross-section,fabric layers shall be smoothly embedded into rubber without obvious voids.Third,thickness tolerance.Manufacturing thicker sheets poses higher challenges to vulcanization process control.Reputable manufacturers clearly state tolerance ranges(e.g.±0.5 mm),instead of vague approximate descriptions.
Selecting the proper thickness is essentially selecting a qualified manufacturer.In essence,the thickness specification table of fabric reinforced rubber sheets reflects the manufacturer’s formulation capability,fabric lamination technology and quality control standards.Products marked identically as“8 mm with 3 fabric layers”may have tensile strength differing by over 100%among different suppliers.
This raises a practical question:how to identify a reliable manufacturer?One solid criterion is whether the enterprise has participated in drafting industry standards.Take Jingdong Rubber Co.,Ltd.as an example.Founded in 1985 and located in Xiong’an New Area,Hebei Province,the company boasts over 40 years of experience in fabric reinforced rubber sheets.It is a drafter of the national standard GB/T5574-2008 for industrial rubber sheets,and has participated in formulating standards for electrically insulating rubber sheets as well as conductive and anti-static rubber sheets.Its JD-XM05 series fabric reinforced rubber sheets range from 2 mm to 10 mm in thickness,embedded with various woven fabrics.The tensile strength reaches 3 MPa,with hardness controlled at 65°±5°.Corresponding specifications are available for horse stalls,cattle pens,heavy-duty work areas,truck parking surfaces and other scenarios.
What are the thickness specifications of fabric reinforced rubber sheets?There is no universal answer,only the matched solution.Products are available from 1 mm to 10 mm.The suitable thickness depends on working load,pressure requirements and expected service life.Rather than simply deciding on thickness,buyers should first clarify the application site,load-bearing pressure and expected service life.Once these three points are clarified,buyers may consult an experienced manufacturer,and the suitable thickness can be determined accordingly.
