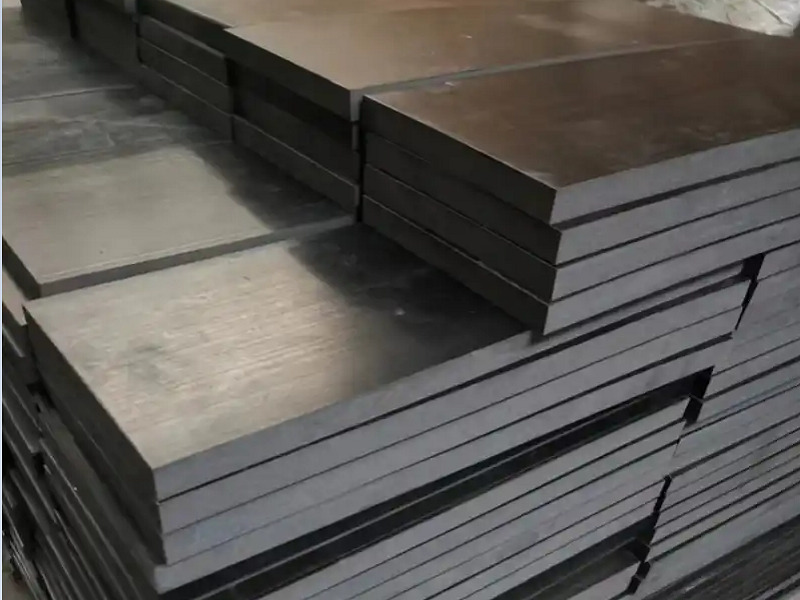

Bridge rubber pads,formally referred to as laminated rubber bearings,act as key load-transfer members linking a bridge’s superstructure to its substructure piers and abutments.Though they look like plain rubber slabs,these components evenly transfer loads from the beam to piers and abutments,while accommodating horizontal displacement and rotational deformation induced by temperature fluctuations,concrete shrinkage and creep.Installation quality exerts a direct impact on bridge service life and traffic safety,so no negligence is permissible.
Many practitioners mistakenly believe installing rubber pads is as simple as laying rubber slabs on piers and placing beams on top.In reality,the entire installation follows rigorous procedural standards,and every step calls for careful supervision.
Prior to construction,the concrete strength of bridge piers must satisfy design requirements,and prestressed tensioning work should be finished as preconditions.The axes and elevations of piers and abutments need re-verification before commencing work.In the meantime,thoroughly clean the top faces of piers and abutments and erect necessary safety guardrails.Prepare proper tools on site:spirit levels for flatness inspection,chisels and small shovels for surface roughening and clearing,rubber mallets to adjust bearing positions,wire brushes to strip loose rust and contaminants,steel wedges for temporary fixing and fine adjustment,along with string lines and plumb bobs for measurement tasks.
The first installation step involves roughening and cleaning the top surface of bearing pad stones.Roughening enhances bonding performance between new and old concrete or mortar,forming a coarse interface on pad stones so the subsequent levelling layer can adhere securely.Once roughening completes,clear all debris and dust thoroughly with wire brushes and brooms,making sure the base surface stays dry,clean and free of oil stains.
＞send emails to sales@jingdongrubber.com,get a quote now
The subsequent procedure is surveying and setting out.Mark bearing center points and snap cross reference lines on the top of bearing pad stones in line with construction drawings.This stage forms the positioning benchmark for the whole installation.Misaligned centerlines create uneven bearing loads and eccentric compression.Over time,this can cause local cracking or permanent deformation of rubber pads.Inspect pad stone elevation during layout work;correct large elevation discrepancies by applying cement mortar for levelling.
Levelling repair is critical to ensure uniform load distribution on bearings.When bearing pad stones feature major elevation differences,lay a cement mortar layer for levelling purposes.Important technical reminder:control mortar thickness appropriately.Overly thick mortar will produce substantial shrinkage during curing and compromise surface flatness.After spreading the mortar,place the rubber bearing on top.The self-weight of the beam will naturally level the bearing.This method is widely used for cast-in-situ beam construction,boasting simple operation and reliable load-bearing performance.
During bearing seating,align the centerline precisely to match the bearing center with the pad stone center.Where two or four bearings are fitted under a single beam,align each bearing separately and harmonize their heights to maintain all bearings on the same horizontal plane.Tap lightly around the bearing using a rubber mallet to set it steadily into place.Never strike forcefully with steel hammers,as this may damage the rubber body.
Once beam erection or casting finishes,conduct recheck and adjustment.Inspectors shall re-examine bearing positions with spirit levels and plumb bobs to identify displacement or tilting.If deviations exist,fine-tune with steel wedges until the positions comply with design specifications.Frequently overlooked,this step is vital to guarantee long-term stable bearing operation.
Watch out for several common problems throughout the installation process.First,keep the top surface of pier pad stones clean.Premature bearing failure on many bridges stems from residual debris or oil contamination on pad stones during installation.This creates voids between bearings and pad stones,reduces effective bearing area and triggers local stress concentration.Second,strictly control the mix ratio and thickness of mortar levelling layers.Mortar with inadequate strength or excessive thickness may crush after the bridge opens to traffic and lead to bearing settlement.Third,avoid installing bearings backwards.Laminated rubber bearings normally have no fixed orientation.Nevertheless,strictly follow construction drawings for designs involving slope or eccentricity requirements instead of installing based purely on experience.
Seemingly straightforward,the installation of bridge rubber pads requires meticulous attention to every detail.All working procedures,including pad stone roughening,survey setting out,levelling repair,bearing placement and post-installation recheck,influence the final stress condition of bearings.Solid foundational work keeps the bridge’s”joints”flexible and stable,enabling safe operation over decades.
